Wireless UAV Full Duplex OFDM Transmitter With Two Way Data Link 20km

  • 1
  • 2

Brand Name : Hincn

Model Number : HCL601

Place of Origin : China

MOQ : 1 set

Price : US$1,178~US$1,268

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 799pcs/month

Delivery Time : 7~14 working days

Packaging Details : Canned and packaged in cardboard boxes

Frequency : 566~678MHz or 1420~1530MHz

RF Power : 300mW *2( Each 300mW of the 2 antennas)

Sensitivity : -102dBm(1Mbps at 20MHz)

Power input : 7~18V

FHSS : Support

OEM& ODM : Support

Contact Now

20km UAV Video Transmitter Wireless Video Transmission With Two Way Data Link


Key Features:

  • TDD OFDM full duplex wireless transceiver suitable for UAV Drone video data Link.
  • Supports point to point and point to multipoint networks.
  • Control by web browser or control uart.
  • 3 Ethernet and 1 channel RS232/TTL for data link.
  • Wirelress video data transmission with 300mW*2 RF power.


Overview:


Hincn HCL601 UAV video transmitter is designed for video data wireless transmission with two way wireless data link. It operates in the 600MHz or 1.4GHz bands, with frequency hopping technology (FHSS) to ensure better stability of signal communication.


Technical Specifications:


20km UAV Video Transmitter Wireless Video Transmission With Two Way Data Link
Model number HCL601
Modulation TDD OFDM
Frequency 566~678MHz and 1420~1530MHz
Bandwidths 3/ 5/ 10/ 20/ 40MHz
Throughput Maximum 100Mbps
RF transmission Power 300mW *2( Each 300mW of the 2 antennas)
Constellation QPSK,16QAM,64QAM, self-adaption
Sensitivity -102dBm(1Mbps at 20MHz)
IP data transmission 3 Ethernet ports
Serial data transmission 1 channel RS232 or TTL
Transmission range 1~2km( ground to ground), 5~22km( UAV to ground)
Management Trough Web UI or Control uart
Encryption AES128-bit encryption
Network mode Point-to-Point, Point-to-Multipoint, Relay, and Mesh(specify)
Movement speed Support maximum 120km/h
Power input 7~18V
Power consumption <8W
Dimensions 83.7*61.4*19 mm
Weight 98g


Wireless UAV Full Duplex OFDM Transmitter With Two Way Data Link 20km

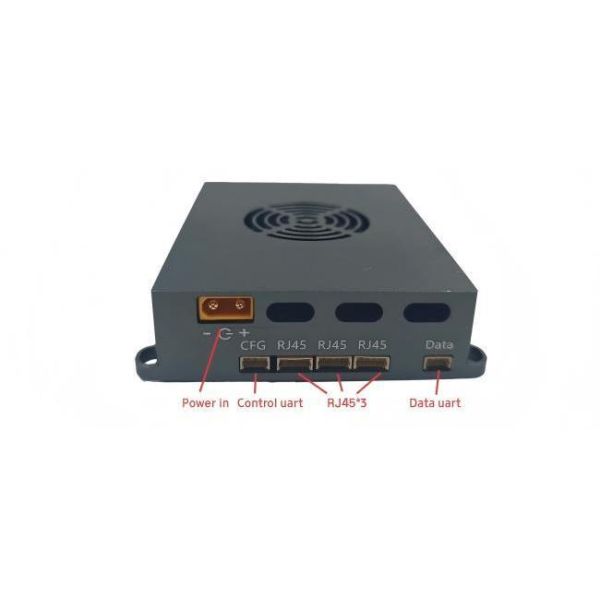

Input/ Output Description
Ethernet 3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART RS232 data UART, 3PIN PH1.25mm connector
Control UART TTL control UART, 3PIN PH1.25mm connector
Power in XT30PW-M connector
ANT 1 Tx/Rx Antenna port, SMA female
ANT 2 Tx/Rx Antenna port, SMA female


FAQ


Q1. Does this UAV video transmitter support any other cameras except IP camera?


A: IP camera video can be connected with it directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE10/SE11 encoder and then work with it via Ethernet connection.


Q2. Does the model have a more advanced version that supports longer-distance video data transmission?


A: Yes, HCL602 and HCL605 radio devices support much longer range, up to 100km wireless video data transmission.
